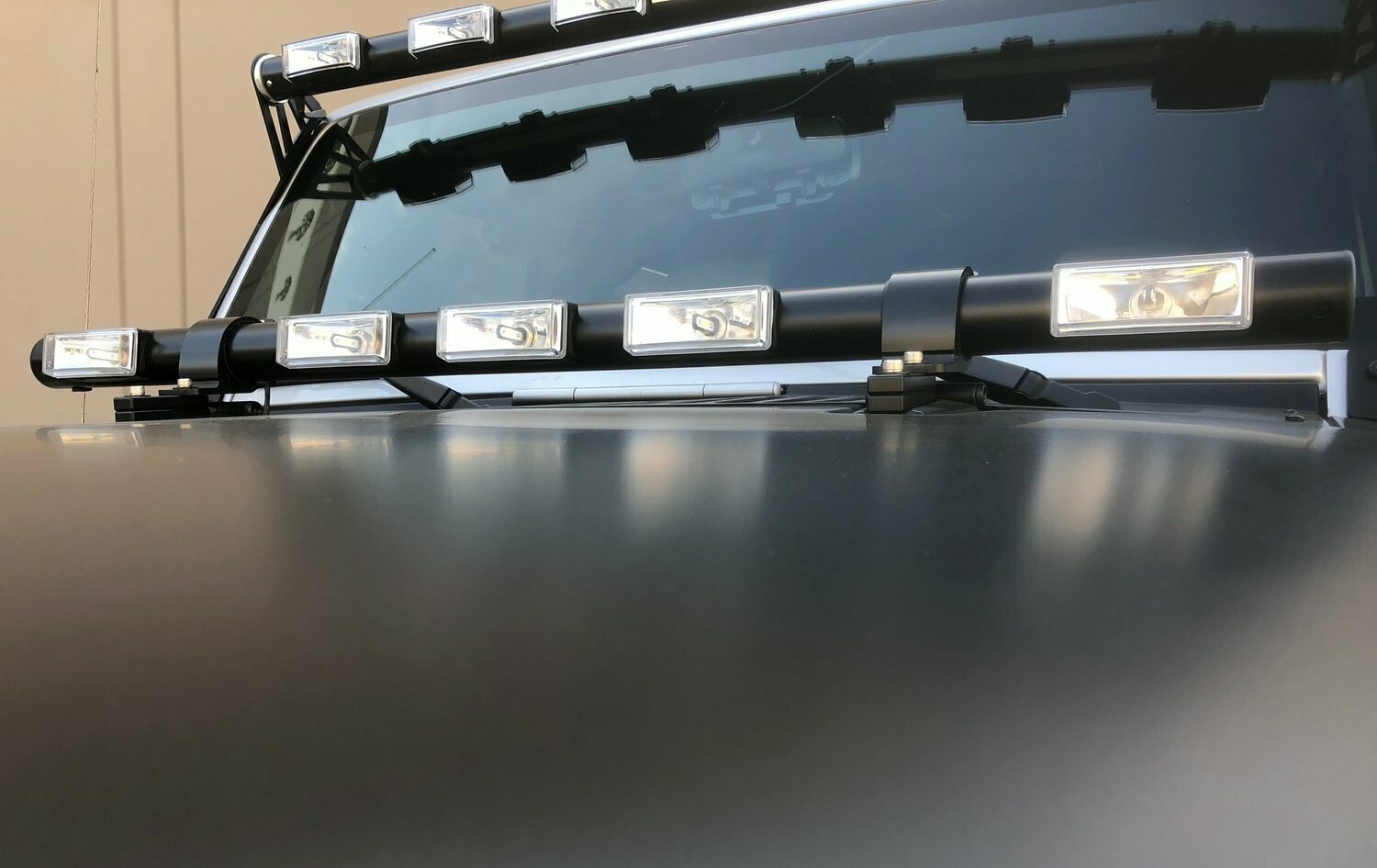

RANGE 48" LED Light Bar for JEEP JK/ TJ -40,000 Lm patented Delta design.
The Range light bar defines the horizon of visibility at the lower portion of the windshield. Composed of a 48" all aluminum laser cut round crossbar. It is powered by five LED reflective lights each putting out 8,000 raw lumens. The reflector further amplifies the effective light generated by 20% making the total effective lumen output is 48,000!!! That is 1,000 lm/ inch!! Currently the largest most powerful hood mounted light bar in existence.
Easy 'Bolt-on' installation for JEEP JK using supplied stainless steel powder coated hardware. No JEEP? No Problem. The Magnet version can be mounted on any metal surface. Four Teflon coated 50 lbs. test magnets require 200 lbs. of force to be removed from the surface. Includes quick connect water-proof contacts to allow for quick removal to lock up and stow bar when not in use. Covers included to meet highway code. All replaceable components.
Three design options extend the versatility of this bar to any vehicle or application you need.
Series | Model | Length (inches) | Weight (pounds) | WATT | AMP | Raw Lumen | Effective Lumen | Lm/ Watt | Cost/ Raw Lm (USD) | MSRP (USD) |
Range | TUBL | 48 | 10 | 175 | 14.5 | 40,000 | 48,000 | 228.6 | 0.02 | 941.90 |
Range | TUBB | 48 | 10 | 175 | 14.5 | 40,000 | 48,000 | 228.6 | 0.02 | 958.59 |
Range | TUBM | 48 | 13 | 175 | 14.5 | 40,000 | 48,000 | 228.6 | 0.02 | 992.12 |
